Automotive 20000lb 12v Winch (wire rope)
Sale price
$4,206.47 FJD
Regular price
$4,299.00 FJD
Unit price
/
Unavailable

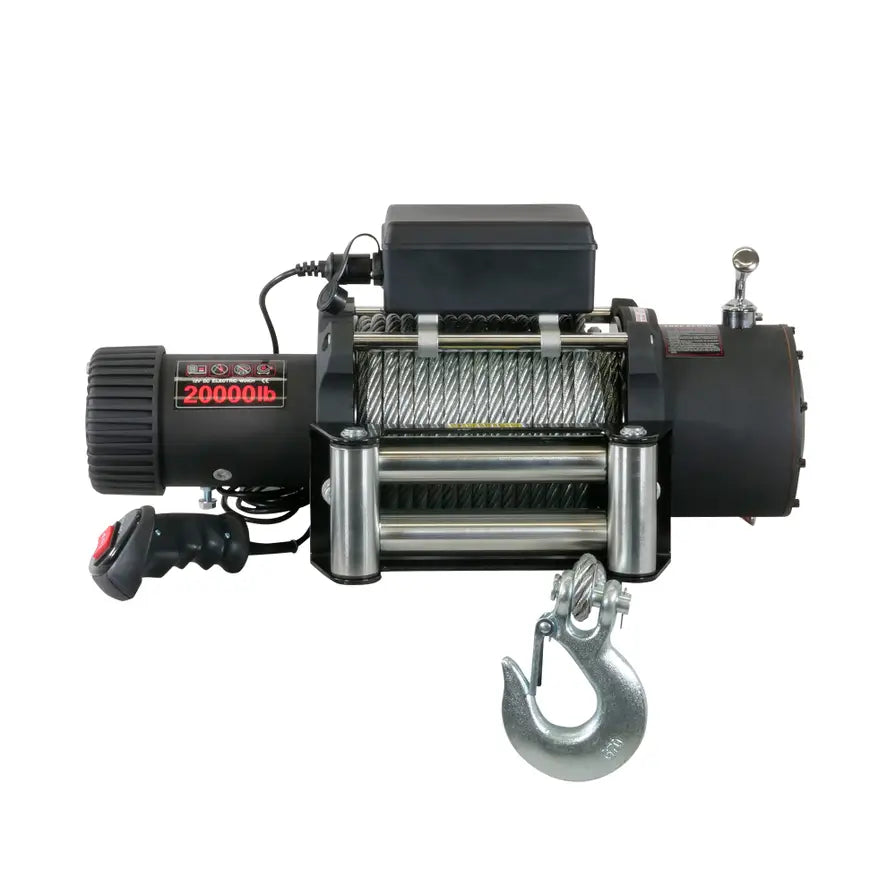

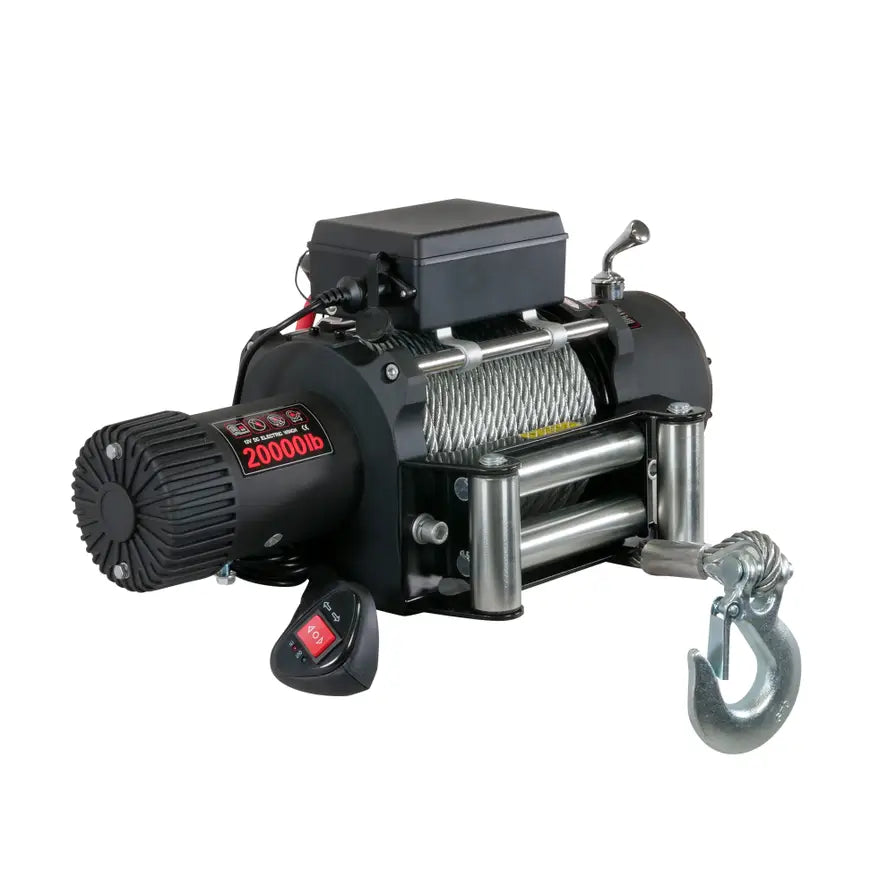

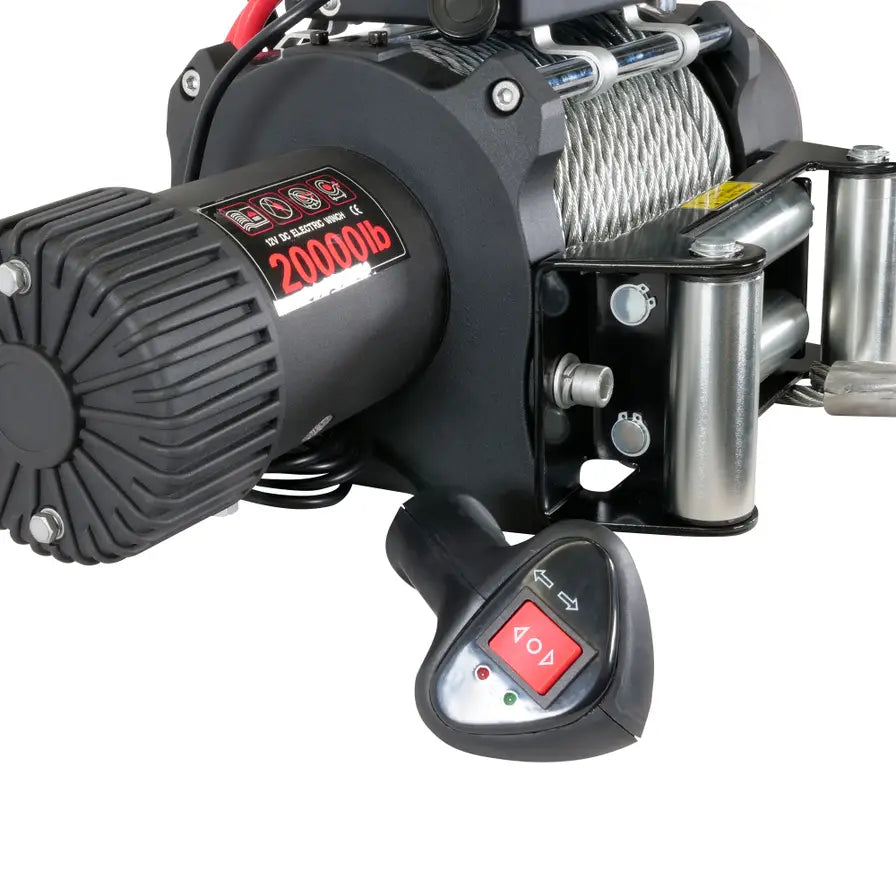

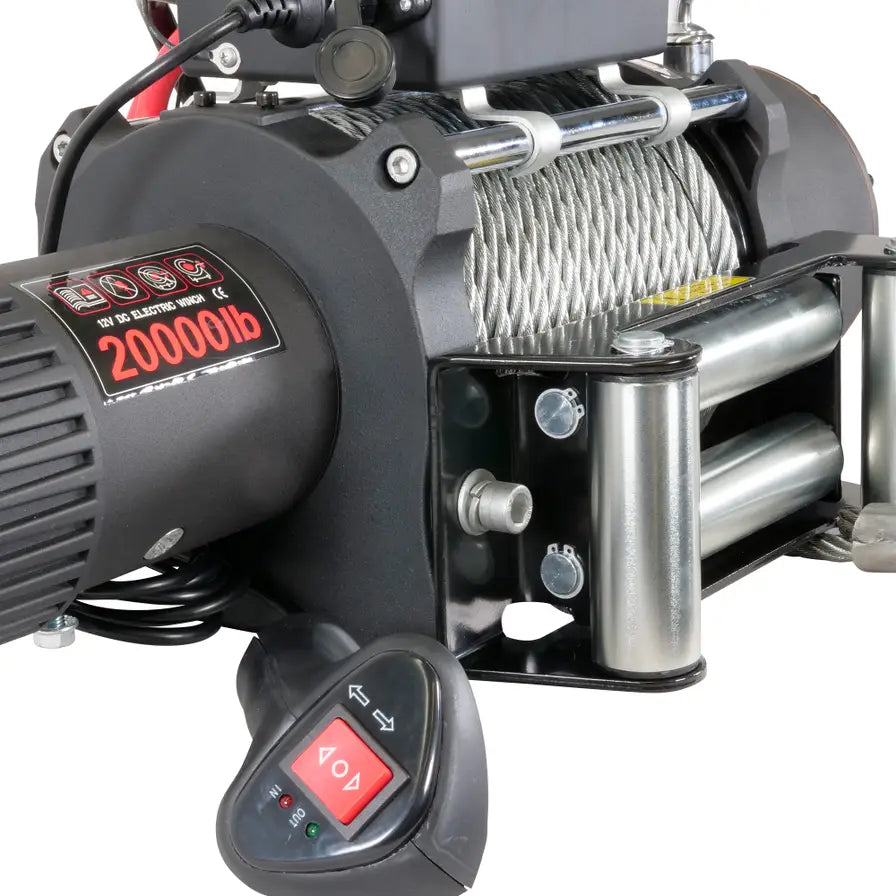

20000lb 12v Winch (wire rope)
DETAILS:
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper Winch traction is valued by pound which can be converted to ton or kilogram.
Do not exceed the rated traction The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.
The best advantage is that it can be normally used in condition of vehicle switch off while others can not Easy and multi-position installed, fast movable High density and high strength wire rope, durable and firm.
- 9071kg (20000lb) capacity (not vertical) single line
- Cable 12mm x 27M
- Motor 5.8kw (7.8hp) 12v
- Gear ratio 469:1
- Drum size 89mm dia. x 224mm
- Drumming speed: 1.2M/min

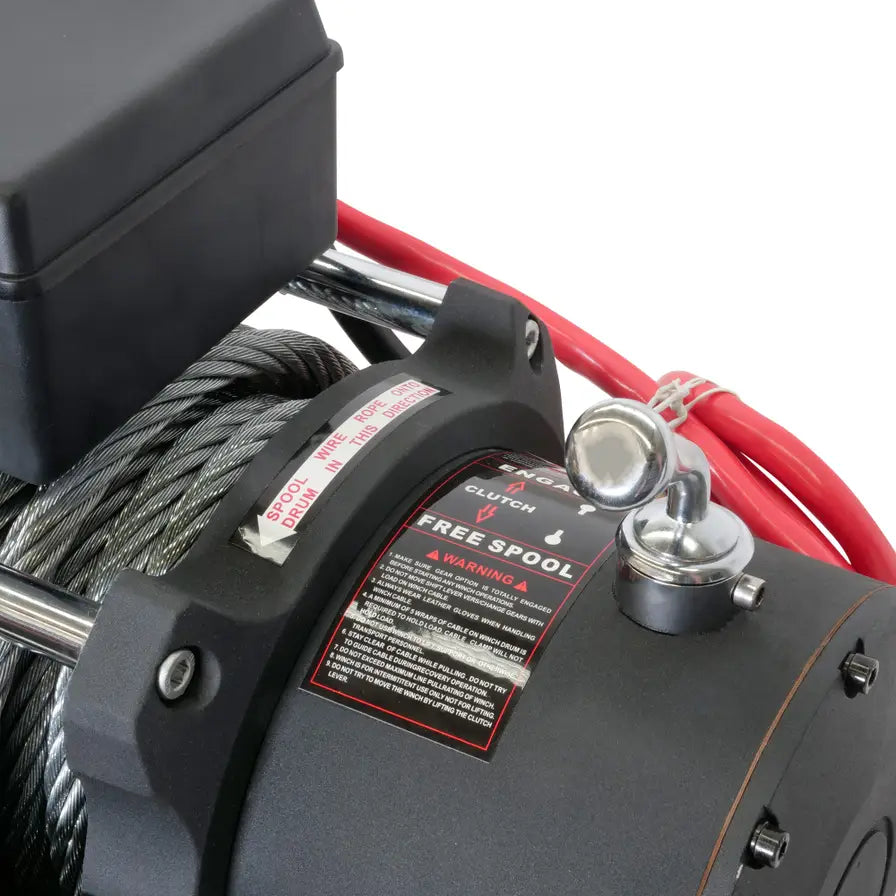

- Free spooling clutch is cam activated
- Gear Train: differential planetary
- Remote switch cable length: 3M
- Electric cable length: 3M

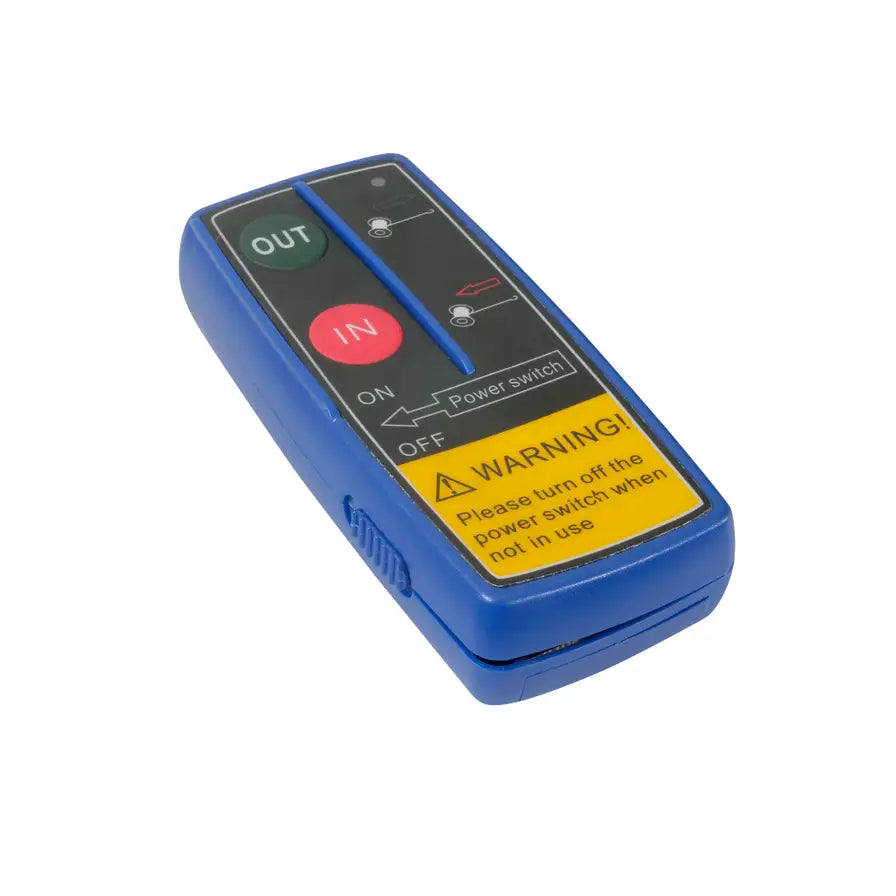

- Includes remote control
| Capacity | 20,000lb |
| Motor | 7.3hp/5.5kw |
| Gear Reduction Ratio | 375:1 |
| Rope Size | Dia 12mm x 27M |

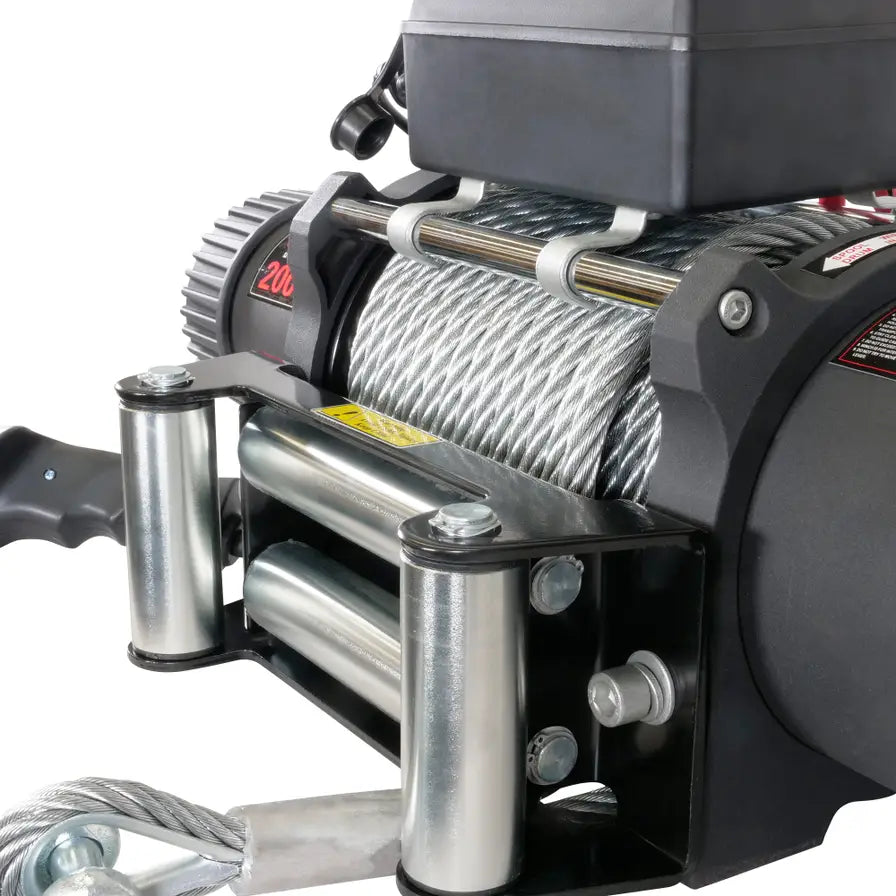

| Fairlead | 4-way roller |
| Voltage | DC12v |
| Weight | 52Kg |
| IP Rating | 67 |
