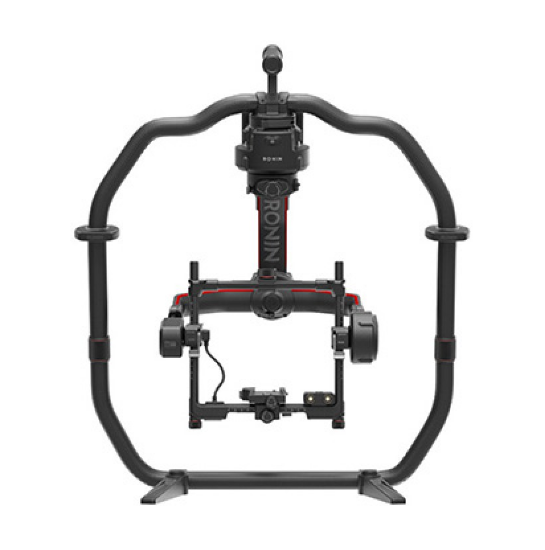

DJI Ronin Gimbal

Three Operation Modes

· Underslung Mode

· Upright Mode

· Briefcase Mode

Built-in independent IMU module

DJI Specialized Gimbal Drive Motors with Encoders

Bluetooth Module

USB Connection

2.4GHz Receiver

Temperature Sensor

DJI Advanced 32-Bit DSP Processor

D-Bus Receiver Supported

Working Performance

Load Weight (Reference Value) ... 16lbs (7.25kg)

Angular Vibration Range ... ± 0.02°

Maximum Controlled Rotation Speed ... Pan axis: 90°/s

Tilt axis: 100°/s

Roll axis: 30°/s

Controlled Rotation Range ... Pan axis control: 360°

Tilt axis control: +45° to -120°

Roll axis control: ± 25°

Mechanical Endpoint Range ... Pan axis: 360°

Tilt axis: +110° /-170°

Roll axis: ± 110°

Mechanical & Electrical Characteristics

Working Current ... Static current: 300mA (@16V)

Dynamic current: 600mA (@16V)

Locked motor current: Max 10A (@16V)

Run Time ... 6 hours

Operating Temperature ... 5°F ~ 120°F (-15°C ~ 50°C)

Weight ... 4.20kg (9.26lbs) fully loaded with handlebar
